Intermediate Data Science

Linear and Logistic Regression

Author

Joanna Bieri
DATA201

Intermediate Data Science

Important Information

Email: joanna_bieri@redlands.edu
Office Hours take place in Duke 209 – Office Hours Schedule
Class Website
Syllabus

Today’s Reading

Introduction to Machine Learning with Python, Chapters 2.1 and 2.2 - Classification and Regression, and Generalization, Overfitting, and Underfitting.

Career Reading

Build a Career in Data Science, 2.5 Data Science Companies: Government Contractors. Read it and take notes by Tuesday 11/3. We discuss all of the chapter 2 company types together on Tuesday 11/10.

Final Project

Your Project Proposal and Exploratory Data Analysis is due Tuesday 11/10 at 11:59pm. See the Final Project Information page for what to hand in and all of the due dates.

Introduction to Linear and Logistic Regression

Linear Regression - for predicting continuous outcomes (e.g., prices, scores). It is a true regression model where we are trying to fit a straight line to some data!
Logistic Regression - for predicting categorical outcomes (e.g., yes/no, 0/1). This is a classification model! A way to take the idea of linear regression and turn it into classification.

We’ll explore: 1. The basic ideas behind each model
2. How to fit and interpret them using scikit-learn
3. How to visualize and evaluate model performance

1. Background: Linear Regression

The goal of linear regression is to model a relationship between one (or more) predictor variables \(x\) and a continuous target variable \(y\). The simplest form (one predictor) is

\[ \hat{y} = w_0 + w_1 x \]

For multiple predictors we would just have more variables:

\[ \hat{y} = w_0 + w_1 x_1 + \cdots + w_p x_p \]

The goal is to find constants \(w_n\) that give us the best “fit” or prediction.

The common approach (ordinary least squares) is to choose the constants \(w_i\) to minimize the sum of squared errors or residuals:

\[ \sum_{i=1}^n (y_i^{real}-y_i^{predicted})^2 = \sum_{i=1}^{n} (y_i - \hat{y}_i)^2 \]

In this context the “machine learning” is figuring out what these constants should be!

In this basic formulation we are assuming that the data is in fact linear. By choosing a linear regression model this is your basic assumption. We will have ways to think, numerically, about whether or not this is a good assumption.

# Some basic package imports
import os
import numpy as np
import pandas as pd

# Visualization packages
import matplotlib.pyplot as plt
import plotly.express as px
from plotly.subplots import make_subplots
import plotly.io as pio
pio.renderers.default = 'notebook_connected'
import seaborn as sns

from sklearn.model_selection import train_test_split
from sklearn.linear_model import LinearRegression, LogisticRegression
from sklearn.metrics import mean_squared_error, r2_score, accuracy_score, confusion_matrix, classification_report, roc_curve, auc

Let’s do linear regression on a fake dataset so we can see the overall process.

# Generate a synthetic dataset
np.random.seed(0)
n_samples = 100
X = 2.0 * np.random.rand(n_samples, 1)
y = 4.0 + 3.0 * X[:,0] + np.random.randn(n_samples)  # y = 4 + 3x + noise

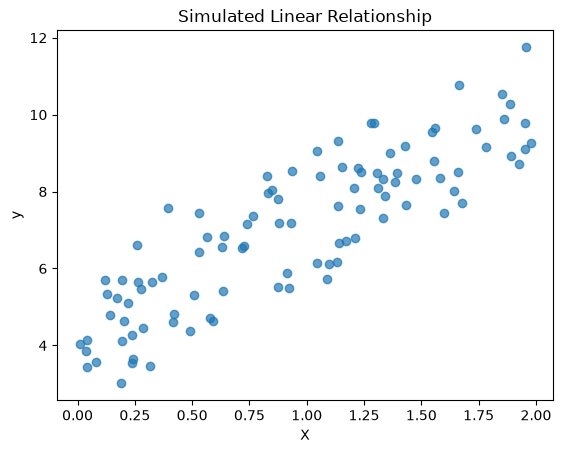

plt.scatter(X, y, alpha=0.7)
plt.title("Simulated Linear Relationship")
plt.xlabel("X")
plt.ylabel("y")
plt.show()

We always want to split our data into a training and testing set so that we can test our model on data that it has not seen before!

# Split into train/test
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

Then we define our model and train (fit) the model. In the case of linear regression with one variable we get two constants out of the model: the slope and the intercept.

# Fit linear regression
linreg = LinearRegression()
linreg.fit(X_train, y_train)

print("Intercept (w0):", linreg.intercept_)
print("Coefficient (w1):", linreg.coef_[0])

Intercept (w0): 4.206340188711437
Coefficient (w1): 2.9902591010048902

Now that we have a trained model we can see how well it does using the testing data.

# Predict and evaluate
y_pred = linreg.predict(X_test)
mse = mean_squared_error(y_test, y_pred)
r2 = r2_score(y_test, y_pred)
print(f"MSE on test set: {mse:.3f}")
print(f"R² on test set: {r2:.3f}")

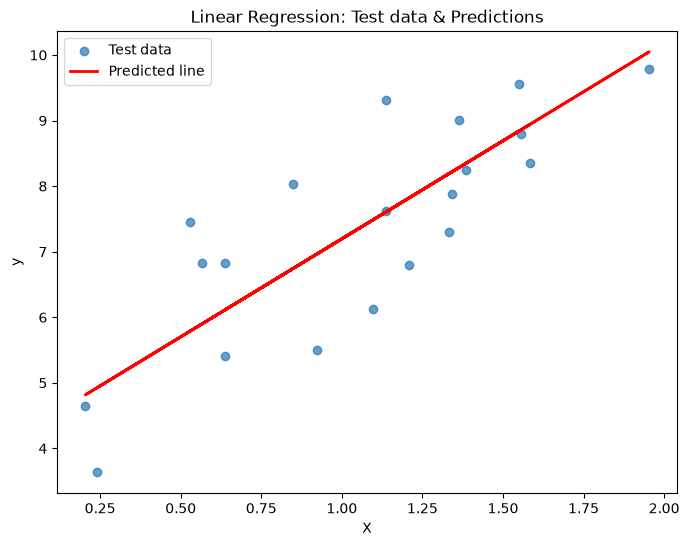

# Plot the results
plt.figure(figsize=(8,6))
plt.scatter(X_test, y_test, alpha=0.7, label='Test data')
plt.plot(X_test, y_pred, color='red', linewidth=2, label='Predicted line')
plt.xlabel("X")
plt.ylabel("y")
plt.title("Linear Regression: Test data & Predictions")
plt.legend()
plt.show()

MSE on test set: 0.918
R² on test set: 0.652

Understanding MSE and R² on the Test Set

1. Mean Squared Error (MSE)

\[ \text{MSE} = \frac{1}{n} \sum_{i=1}^{n} (y_i - \hat{y}_i)^2 \]

Measures the average squared difference between predicted values \((\hat{y}_i)\) and actual values \((y_i)\).
Considering the results above:
- On average, the squared error for each prediction is 0.918.
- Smaller MSE means predictions are closer to actual values.
- Since it’s squared, the units are also squared; the square root gives RMSE root mean squared error. This is nice for interpreting results.

2. Coefficient of Determination (R²)

\[ R^2 = 1 - \frac{\sum_i (y_i - \hat{y}_i)^2}{\sum_i (y_i - \bar{y})^2} \]

Measures how much of the variance in the target is explained by the model.
Considering the results above:
- About 65.2% of the variance in the test data is explained by the model.
- Interpretation of R² values:
  - 1 = perfect fit
  - 0 = model predicts no better than the mean
  - <0 = model performs worse than predicting the mean

Caution

Non-linear relationships or outliers can keep MSE high and R² moderate.
You really should check both!

What if our data was nonlinear?

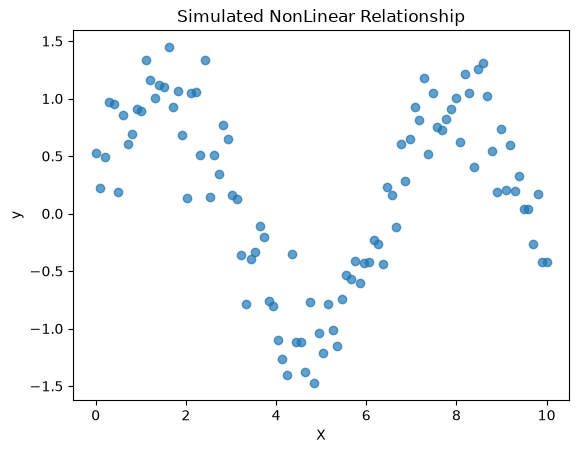

Let’s try to apply linear regression to data that is clearly nonlinear!

# Generate a synthetic dataset
np.random.seed(0)
n_samples = 100
X = np.linspace(0, 10, n_samples).reshape(-1, 1)
y = np.sin(X[:,0]) + 0.3 * np.random.randn(n_samples)  # sine wave with noise

plt.scatter(X, y, alpha=0.7)
plt.title("Simulated NonLinear Relationship")
plt.xlabel("X")
plt.ylabel("y")
plt.show()

# Split into train/test
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# Fit linear regression
linreg = LinearRegression()
linreg.fit(X_train, y_train)

print("Intercept (w0):", linreg.intercept_)
print("Coefficient (w1):", linreg.coef_[0])

Intercept (w0): 0.30727374639513894
Coefficient (w1): -0.024499542550640404

# Predict and evaluate
y_pred = linreg.predict(X_test)
mse = mean_squared_error(y_test, y_pred)
r2 = r2_score(y_test, y_pred)
print(f"MSE on test set: {mse:.3f}")
print(f"R² on test set: {r2:.3f}")

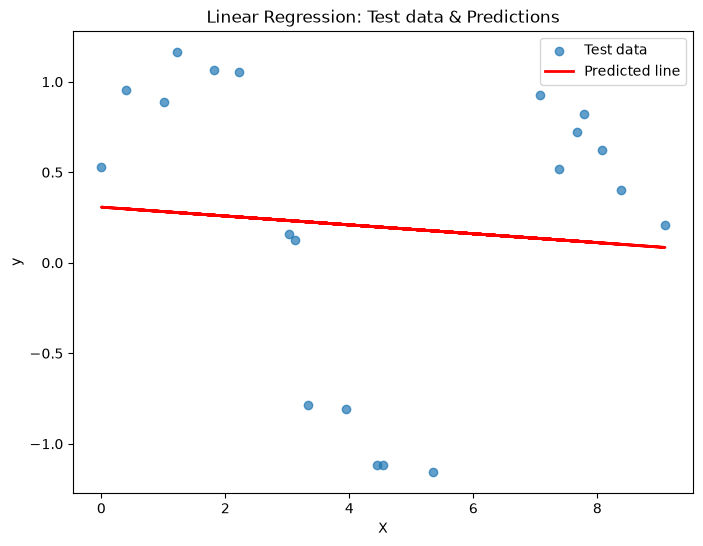

# Plot the results
plt.figure(figsize=(8,6))
plt.scatter(X_test, y_test, alpha=0.7, label='Test data')
plt.plot(X_test, y_pred, color='red', linewidth=2, label='Predicted line')
plt.xlabel("X")
plt.ylabel("y")
plt.title("Linear Regression: Test data & Predictions")
plt.legend()
plt.show()

MSE on test set: 0.612
R² on test set: 0.005

How did we do? Is this a good predictor?

Polynomial (Quadratic) Regression vs Linear Regression

Linear Regression

Linear regression models the relationship between variables (features/predictors) X and the target y as a straight line!

\[\hat y = w_0 + w_1 x_1 + \dots + w_p x_p\]

But not all data is linear!

Polynomial Regression (e.g., Quadratic)

Our goal is to extend linear regression by including powers of predictors and/or interactions:

\[\hat y = w_0 + w_1 x + w_2 x^2 + \dots\]

This allows us to model curved relationships between predictors and the target.

If we wanted we could also use non polynomial functions for either the variables or the target!

\[\hat y = w_0 + w_1 \ln(x)\]

\[\ln(\hat y) = w_0 + w_1 x\]

This process still fits a linear model in terms of coefficients, but the model can capture nonlinear relationships in the data

So if we look at our data above, should we have used a linear function or maybe something else?

Over vs. Underfitting

Let’s try doing polynomial regression on the data above to see if we can get a better fit. In this case we are going to use the Polynomial Features function to create new polynomial variables.

from sklearn.preprocessing import PolynomialFeatures

# Choose a second degree polynomial
degree = 2

# Transform the x variables to be both x and x^2
poly = PolynomialFeatures(degree=degree, include_bias=False)
X_train_poly = poly.fit_transform(X_train)
X_test_poly = poly.transform(X_test)

# Fit linear regression
linreg = LinearRegression()
linreg.fit(X_train_poly, y_train)

# Now we will have three coefficients
print("Intercept (w0):", linreg.intercept_)
print("Coefficient (w1):", linreg.coef_[0])
print("Coefficient (w2):", linreg.coef_[1])

Intercept (w0): 1.1429933136914656
Coefficient (w1): -0.5125048890339421
Coefficient (w2): 0.04789627715549682

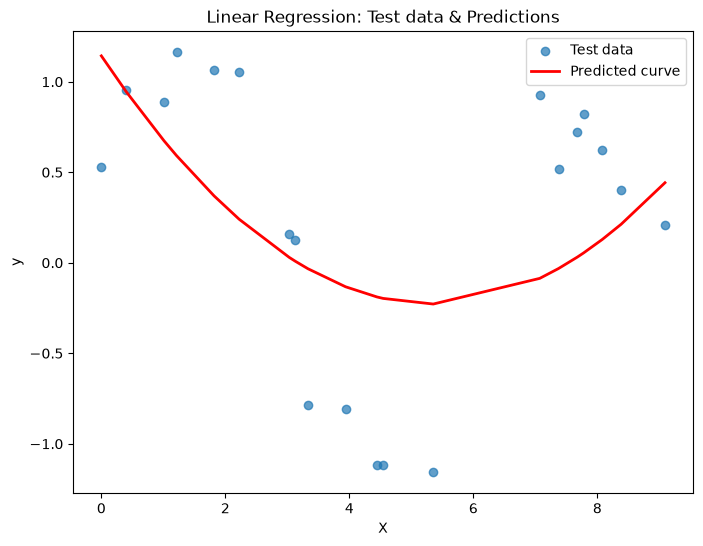

So our model is given by

\[\hat{y} = w_0 + w_1 x + w_2 x^2\]

# Predict and evaluate
y_pred = linreg.predict(X_test_poly)
mse = mean_squared_error(y_test, y_pred)
r2 = r2_score(y_test, y_pred)
print(f"MSE on test set: {mse:.3f}")
print(f"R² on test set: {r2:.3f}")

sorted_idx = X_test[:, 0].argsort()
# Plot the results
plt.figure(figsize=(8,6))
plt.scatter(X_test, y_test, alpha=0.7, label='Test data')
plt.plot(X_test[sorted_idx], y_pred[sorted_idx], color='red', linewidth=2, label='Predicted curve')

plt.xlabel("X")
plt.ylabel("y")
plt.title("Linear Regression: Test data & Predictions")
plt.legend()
plt.show()

MSE on test set: 0.412
R² on test set: 0.329

Did we do better than before? What happens if we try a cubic?

\[\hat{y} = w_0 + w_1 x + w_2 x^2 + w_3 x^3\]

or higher?

from sklearn.preprocessing import StandardScaler

def poly_regress(X_train, X_test, n):
    # Scale x first, so the powers stay a reasonable size.
    # Without this, x^20 is about 10^20 and the computer has to round too much.
    scaler = StandardScaler()
    X_train_small = scaler.fit_transform(X_train)       # fit on the training data only
    X_test_small = scaler.transform(X_test)

    poly = PolynomialFeatures(degree=n, include_bias=False)
    X_train_poly = poly.fit_transform(X_train_small)
    X_test_poly = poly.transform(X_test_small)

    linreg = LinearRegression()
    linreg.fit(X_train_poly, y_train)

    y_pred = linreg.predict(X_train_poly)
    mse = mean_squared_error(y_train, y_pred)
    r2 = r2_score(y_train, y_pred)
    print(f"MSE on training set: {mse:.3f}")
    print(f"R² on training set: {r2:.3f}")
    print('---')

    y_pred = linreg.predict(X_test_poly)
    mse = mean_squared_error(y_test, y_pred)
    r2 = r2_score(y_test, y_pred)
    print(f"MSE on test set: {mse:.3f}")
    print(f"R² on test set: {r2:.3f}")

    # Plot the results. To see the whole curve, we predict on 500 evenly spaced x values
    X_grid = np.linspace(X_train.min(), X_train.max(), 500).reshape(-1, 1)
    y_grid = linreg.predict(poly.transform(scaler.transform(X_grid)))      # same scaling and powers as before
    plt.figure(figsize=(4,3))
    plt.scatter(X_test, y_test, alpha=0.7, label='Test data')
    plt.plot(X_grid, y_grid, color='red', linewidth=2, label='Predicted curve')

    plt.xlabel("X")
    plt.ylabel("y")
    plt.title("Linear Regression: Test data & Predictions")
    plt.legend()
    plt.show()

for n in [3,6,10,16,20]:
    print(f'Linear regression with {n}-degree polynomial')
    poly_regress(X_train, X_test, n=n)

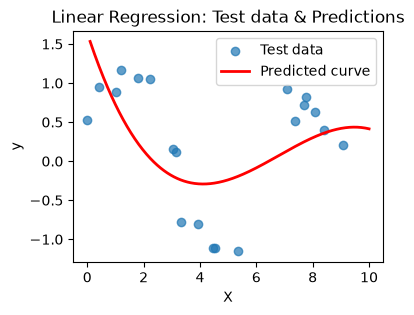

Linear regression with 3-degree polynomial
MSE on training set: 0.409
R² on training set: 0.299
---
MSE on test set: 0.399
R² on test set: 0.351

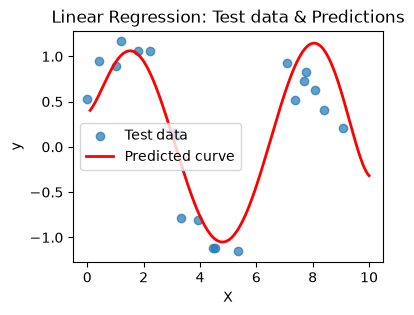

Linear regression with 6-degree polynomial
MSE on training set: 0.076
R² on training set: 0.870
---
MSE on test set: 0.098
R² on test set: 0.841

Linear regression with 10-degree polynomial
MSE on training set: 0.075
R² on training set: 0.871
---
MSE on test set: 0.095
R² on test set: 0.845

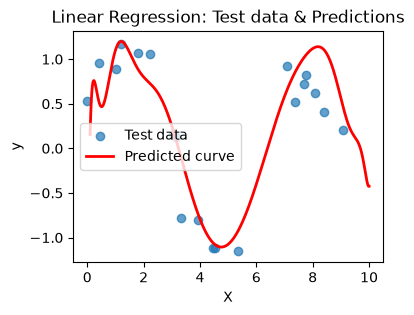

Linear regression with 16-degree polynomial
MSE on training set: 0.067
R² on training set: 0.885
---
MSE on test set: 0.371
R² on test set: 0.398

Linear regression with 20-degree polynomial
MSE on training set: 0.069
R² on training set: 0.883
---
MSE on test set: 0.471
R² on test set: 0.234

NOTE - Inside poly_regress we scale x with a StandardScaler before making the powers. Our x values go up to about 10, so without scaling \(x^{20}\) is about \(10^{20}\), while \(x\) itself is about 10. The computer only keeps about 16 digits, so when the numbers in the columns are that different it has to round a lot, and the fit gets worse even on the training data. Scaling keeps every power a reasonable size. The model is the same, it is just written in different units.

What you should notice here is that we can actually choose a polynomial of too high a degree. This encourages your model to just pick a really jagged line that goes exactly through all the points, effectively memorizing the data. BUT when you ask it to predict on a new point, that point may not be on the somewhat crazy curve you find. This is overfitting and poor model selection. You do not want your model to memorize the data! You want to choose a curve that matches the trend of the data without memorizing it.

You Try

Re-run the code and see if you can find a way to choose the best polynomial for the job. Remember the goal is to be complicated enough to pick up the pattern in the data without being overly complicated. Here are some things to try:

Create models for a range of degrees and keep track of the MSE and R^2 for both the testing and training data (save these to a list). Then make a plot of the results. Can you use the graph to argue which degree you think is best?
Try plotting the magnitude of the error |(Real-Predicted)| for each value in the test set. Do this for a few choices of the degree. If your model is capturing all of the pattern in the data, then the remaining randomness should look fairly random.

# Your code here

Background: Logistic Regression

While linear regression predicts a continuous outcome, logistic regression is used for classification (typically binary) modeling the probability that an outcome belongs to class 1 (versus 0).

Mathematically one models the log-odds (the “logit”) as a linear combination:

\[ \log \frac{p}{1-p} = w_0 + w_1 x_1 + \cdots + w_p x_p \]

This is making the assumption that the data can be separated by a straight line!

Then the probability is

\[ p = \frac{1}{1 + e^{-(w_0 + w_1 x_1 + \cdots + w_p x_p)}} \]

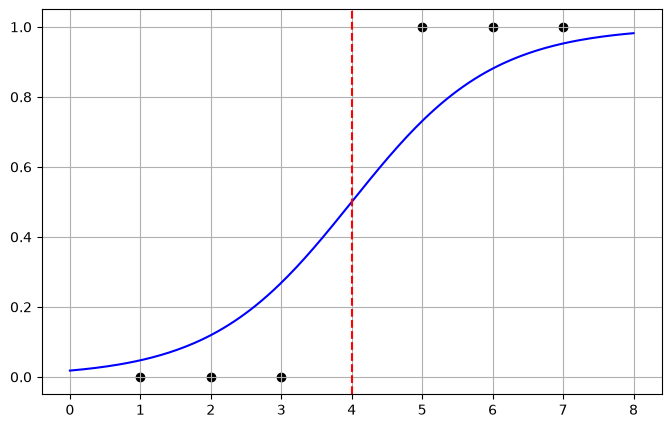

That is, the “sigmoid” (“logistic”) function maps the linear part back into the interval \((0,1)\). The closer the probability is to 0, the more likely the observation belongs to class 0. You have to decide on what the cutoff is (e.g., \(p > 0.5\) = class 1 and \(p <= 0.5\) = class 0)

In this case the coefficients \(w\) relate to log-odds: a 1-unit increase in \(x_j\) multiplies odds by \(e^{w_j}\).

It is STILL a linear model in the log-odds space (it is a linear combination of predictors) but when we apply the sigmoid function it becomes a non-linear mapping in output.

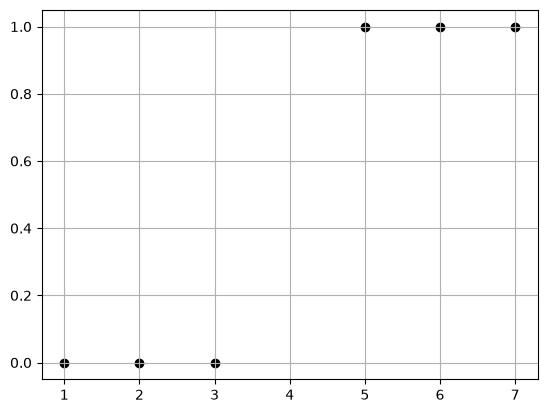

Let’s visualize this in one dimension

Imagine we have the following data:

(x)	(y)
1	0
2	0
3	0
5	1
6	1
7	1

And we want to use \(x\) to predict \(y\)

plt.scatter([1, 2, 3, 5, 6, 7], [0, 0, 0, 1, 1, 1], color="black", label="Sample data")
plt.grid(True)
plt.show()

Well if we were doing this by hand we would say, well if I draw a line at 4, between 3 and 5, then I can use that as a cutoff for how to classify future data.

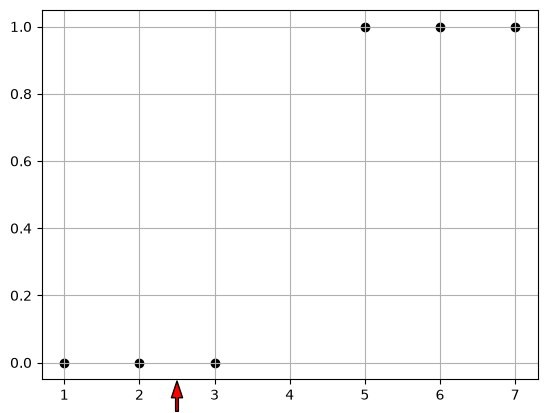

eg. Here is a new data point x=2.5, is it more likely to belong to class 0 or class 1?

plt.scatter([1, 2, 3, 5, 6, 7], [0, 0, 0, 1, 1, 1], color="black", label="Sample data")
plt.grid(True)


plt.annotate(
    '',
    xy=(2.5, -0.05),     # arrow tip (just below x-axis)
    xytext=(2.5, -0.15), # arrow tail
    arrowprops=dict(facecolor='red', shrink=0.05, width=2, headwidth=8)
)

plt.show()

So we say “Given a data point \(x\), what is the probability that it is in class 1?”

\[p(y=1|x)\]

Well the “odds” that x is a member of class 1 are given by:

\[ odds = \frac{p}{1-p} \]

this is just the ratio of the probability of yes vs probability of no.

p=0.5, odds = 1 so there is an equal chance of class 1/class 0.
p=0.8, odds = 4 so it is 4 times more likely to be class 1.
p=0.2, odds = 0.25 so it is 4 times more likely to be class 0.

We assume that the odds are a linear relationship with one variable x:

\[ \log \frac{p}{1-p} = w_0 + w_1 x \]

In this simple case we find \(w_0 = -4\) and \(w_1=1\)

Then we can convert this back into a probability

\[ p = \frac{1}{1 + e^{-(-4+ x)}} \]

# Parameters
w0 = -4
w1 = 1

# Data for plotting
x = np.linspace(0, 8, 200)
p = 1 / (1 + np.exp(-(w0 + w1 * x)))

# Plot
plt.figure(figsize=(8, 5))
plt.plot(x, p, color="blue", label=r"$P(\text{pass} | x) = \frac{1}{1+e^{-(x-4)}}$")
plt.axvline(4, color="red", linestyle="--", label="x = 4 (50% chance)")
plt.scatter([1, 2, 3, 5, 6, 7], [0, 0, 0, 1, 1, 1], color="black", label="Sample data")
plt.grid(True)
plt.show()

Now we can interpret this as given a point if the probability is less than \(0.5\) then it belongs to class 0 and otherwise to class 1. This matches our intuition.

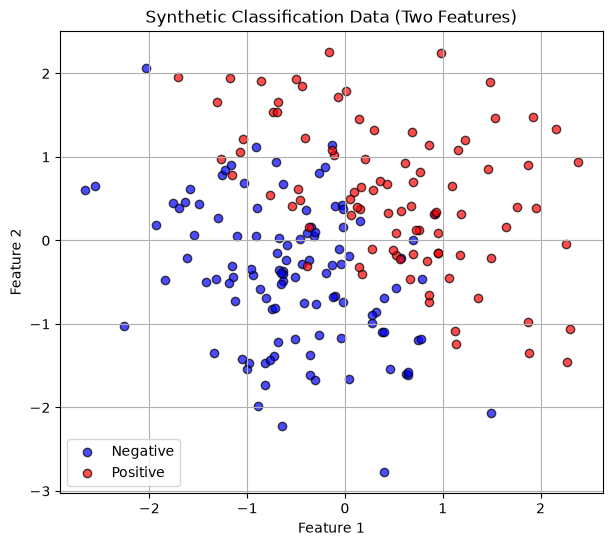

Here is an example with more than one variable:

# Generate synthetic binary classification data
np.random.seed(0)
n_samples = 200
X1 = np.random.randn(n_samples, 2)
y1 = (X1[:,0] + X1[:,1] + 0.5 * np.random.randn(n_samples) > 0).astype(int)

# Scatter plot
plt.figure(figsize=(7,6))
plt.scatter(X1[y1==0, 0], X1[y1==0, 1], color='blue', alpha=0.7, label='Negative', edgecolor='k')
plt.scatter(X1[y1==1, 0], X1[y1==1, 1], color='red', alpha=0.7, label='Positive', edgecolor='k')
plt.xlabel("Feature 1")
plt.ylabel("Feature 2")
plt.title("Synthetic Classification Data (Two Features)")
plt.legend()
plt.grid(True)
plt.show()

We still want to do a test train split!

# Split into train/test
X_train, X_test, y_train, y_test = train_test_split(X1, y1, test_size=0.3, random_state=1)

Now train the model using Logistic Regression!

# Fit logistic regression
logreg = LogisticRegression()
logreg.fit(X_train, y_train)

print("Intercept (w0):", logreg.intercept_[0])
print("Coefficients (w1,w2):", logreg.coef_[0])

Intercept (w0): -0.19490414993905875
Coefficients (w1,w2): [2.28689566 2.12914333]

Here we see our coefficients. This means that:

\[ \log \frac{p}{1-p} = w_0 + w_1 x_1 + w_2 x_2 \]

Here the model found \(w_0 \approx -0.19\), \(w_1 \approx 2.29\) and \(w_2 \approx 2.13\)

Then we can convert this back into a probability

\[ p = \frac{1}{1 + e^{-(w_0 + w_1 x_1 + w_2 x_2)}} \]

So we might say if \(p>0.5\) then we are positive and if \(p<0.5\) we are negative. Here is a plot of this linear decision boundary.

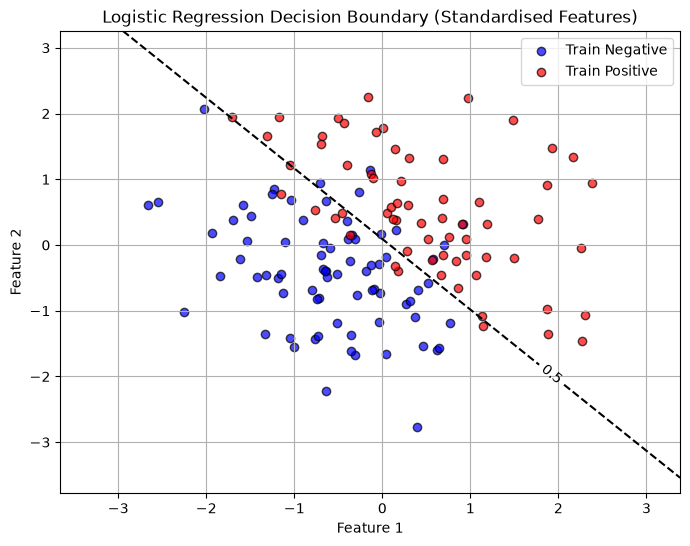

# Create a grid of feature values (in standardized space)
x_min, x_max = X_train[:, 0].min() - 1, X_train[:, 0].max() + 1
y_min, y_max = X_train[:, 1].min() - 1, X_train[:, 1].max() + 1
xx, yy = np.meshgrid(np.linspace(x_min, x_max, 300),
                     np.linspace(y_min, y_max, 300))

# Predict probabilities for each grid point
Z = logreg.predict_proba(np.c_[xx.ravel(), yy.ravel()])[:, 1]
Z = Z.reshape(xx.shape)

# Plot decision boundary and probability contours
plt.figure(figsize=(8,6))
contour = plt.contour(xx, yy, Z, levels=[0.5],
                      colors=['black'], linestyles=['--', '-', '--'])

plt.clabel(contour, fmt={ 0.5:'0.5'}, inline=True, fontsize=10)

# Plot training data (already standardized)
plt.scatter(X_train[y_train==0, 0], X_train[y_train==0, 1],
            color='blue', alpha=0.7, edgecolor='k', label='Train Negative')
plt.scatter(X_train[y_train==1, 0], X_train[y_train==1, 1],
            color='red', alpha=0.7, edgecolor='k', label='Train Positive')

plt.xlabel("Feature 1")
plt.ylabel("Feature 2")
plt.title("Logistic Regression Decision Boundary (Standardised Features)")
plt.legend()
plt.grid(True)
plt.show()

There are many ways to think about accuracy when talking about classification problems. Here we will use the accuracy score classification report and the confusion matrix

# Predictions
y_pred = logreg.predict(X_test)

acc = accuracy_score(y_test, y_pred)
print(f"Accuracy on test set: {acc:.3f}")

print("Confusion Matrix:")
print(confusion_matrix(y_test, y_pred))
print("\nClassification Report:")
print(classification_report(y_test, y_pred))

Accuracy on test set: 0.850
Confusion Matrix:
[[28  6]
 [ 3 23]]

Classification Report:
              precision    recall  f1-score   support

           0       0.90      0.82      0.86        34
           1       0.79      0.88      0.84        26

    accuracy                           0.85        60
   macro avg       0.85      0.85      0.85        60
weighted avg       0.86      0.85      0.85        60

Understanding Classification Metrics

The output above has a lot of information!

Accuracy

First we see that the accuracy = 0.85. This seems pretty good, but sometimes accuracy can be deceiving!

It reports the proportion of total predictions that are correct:
\[\text{Accuracy} = \frac{TP + TN}{TP + TN + FP + FN}\]

Confusion Matrix

The confusion matrix tells us a count of which predictions we got right and wrong,

TN	FP
FN	TP

TN = True Negatives - predicted class 0 belongs to class 0
TP = True Positives - predicted class 1 belongs to class 1
FN = False Negatives - predicted class 0 belongs to class 1
FP = False Positives - predicted class 1 belongs to class 0

Precision

Measures the accuracy of positive predictions.
Formula:
\[\text{Precision} = \frac{TP}{TP + FP}\]
High precision means few false positives.

Recall (Sensitivity or True Positive Rate)

Measures how well the model finds all actual positives.
Formula:
\[\text{Recall} = \frac{TP}{TP + FN}\]
High recall means few false negatives.

F1-Score

The harmonic mean of precision and recall.
Formula:
\[\text{F1-score} = 2 \times \frac{\text{Precision} \times \text{Recall}}{\text{Precision} + \text{Recall}}\]
Balances precision and recall. Useful when classes are imbalanced.

Support

The number of actual occurrences of each class in the dataset.
Indicates how many samples of each class were present when computing the metrics.

Now all of this depends on where we set our decision boundary! It was somewhat arbitrary to choose \(p=0.5\) as the cutoff.

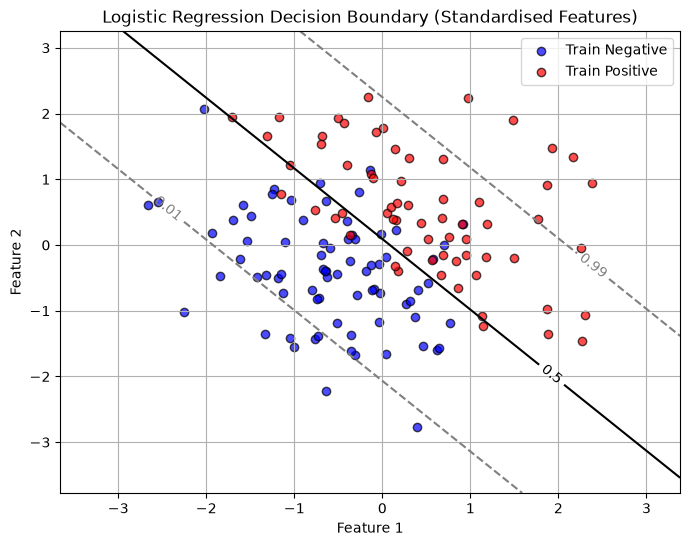

Choosing The Decision Boundary

The decision boundary is the “line” that shows when we would say the observation falls under class 0 vs when it would fall under class 1. By default we use a probability of \(p=0.5\).

# Create a grid of feature values (in standardized space)
x_min, x_max = X_train[:, 0].min() - 1, X_train[:, 0].max() + 1
y_min, y_max = X_train[:, 1].min() - 1, X_train[:, 1].max() + 1
xx, yy = np.meshgrid(np.linspace(x_min, x_max, 300),
                     np.linspace(y_min, y_max, 300))

# Predict probabilities for each grid point
Z = logreg.predict_proba(np.c_[xx.ravel(), yy.ravel()])[:, 1]
Z = Z.reshape(xx.shape)

# Plot decision boundary and probability contours
plt.figure(figsize=(8,6))
contour = plt.contour(xx, yy, Z, levels=[0.01, 0.5, 0.99],
                      colors=['gray', 'black', 'gray'], linestyles=['--', '-', '--'])

plt.clabel(contour, fmt={0.01:'0.01', 0.5:'0.5', 0.99:'0.99'}, inline=True, fontsize=10)

# Plot training data (already standardized)
plt.scatter(X_train[y_train==0, 0], X_train[y_train==0, 1],
            color='blue', alpha=0.7, edgecolor='k', label='Train Negative')
plt.scatter(X_train[y_train==1, 0], X_train[y_train==1, 1],
            color='red', alpha=0.7, edgecolor='k', label='Train Positive')

plt.xlabel("Feature 1")
plt.ylabel("Feature 2")
plt.title("Logistic Regression Decision Boundary (Standardised Features)")
plt.legend()
plt.grid(True)
plt.show()

But the choice of this cutoff is arbitrary! Sometimes a BIG part of the classification problem is figuring out what the cutoff should be!

What if we decide to move the cutoff to \(p=0.3\)?

# Set a custom cutoff (e.g., 0.3 instead of 0.5)
cutoff = 0.3

# Predicted probabilities for class 1
y_prob = logreg.predict_proba(X_test)[:,1]


y_pred_custom = (y_prob >= cutoff).astype(int)

# Evaluate
acc = accuracy_score(y_test, y_pred_custom)
print(f"Accuracy on test set (cutoff={cutoff}): {acc:.3f}")

print("Confusion Matrix:")
print(confusion_matrix(y_test, y_pred_custom))
print("\nClassification Report:")
print(classification_report(y_test, y_pred_custom))

Accuracy on test set (cutoff=0.3): 0.833
Confusion Matrix:
[[26  8]
 [ 2 24]]

Classification Report:
              precision    recall  f1-score   support

           0       0.93      0.76      0.84        34
           1       0.75      0.92      0.83        26

    accuracy                           0.83        60
   macro avg       0.84      0.84      0.83        60
weighted avg       0.85      0.83      0.83        60

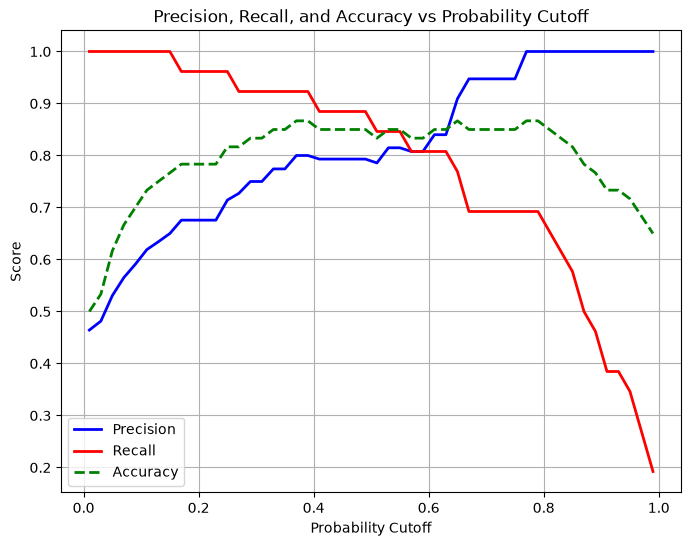

from sklearn.metrics import precision_score, recall_score
# Define a range of cutoffs
cutoffs = np.linspace(0.01, 0.99, 50)
precisions = []
recalls = []
accuracies = []

# Calculate precision, recall, and accuracy for each cutoff
for cutoff in cutoffs:
    y_pred_custom = (y_prob >= cutoff).astype(int)
    precisions.append(precision_score(y_test, y_pred_custom, zero_division=0))
    recalls.append(recall_score(y_test, y_pred_custom, zero_division=0))
    accuracies.append(accuracy_score(y_test, y_pred_custom))

# Plot precision, recall, and accuracy vs cutoff
plt.figure(figsize=(8,6))
plt.plot(cutoffs, precisions, label='Precision', color='blue', linewidth=2)
plt.plot(cutoffs, recalls, label='Recall', color='red', linewidth=2)
plt.plot(cutoffs, accuracies, label='Accuracy', color='green', linestyle='--', linewidth=2)
plt.xlabel('Probability Cutoff')
plt.ylabel('Score')
plt.title('Precision, Recall, and Accuracy vs Probability Cutoff')
plt.legend()
plt.grid(True)
plt.show()

Remember perfect recall means that we do not see any false negatives. In this case when we move our probability cutoff to 0.1 we see that we predict almost everything as positive, we don’t miss a single positive case with our prediction. It would be important to have high recall when missing positives is a big problem (eg. cancer detection - you don’t want false negatives) But our accuracy is very low!

Perfect precision means that we do not see any false positives. In this case when our probability cutoff is moved to 0.99 we see that we predict almost everything as negative, we don’t miss a single negative case. It would be important to have high precision in cases when a positive outcome has a large impact (eg. detecting fraud - you don’t want false positives). But again our accuracy is low.

The best choice is somewhere in the middle and is highly dependent on the problem you are trying to solve.

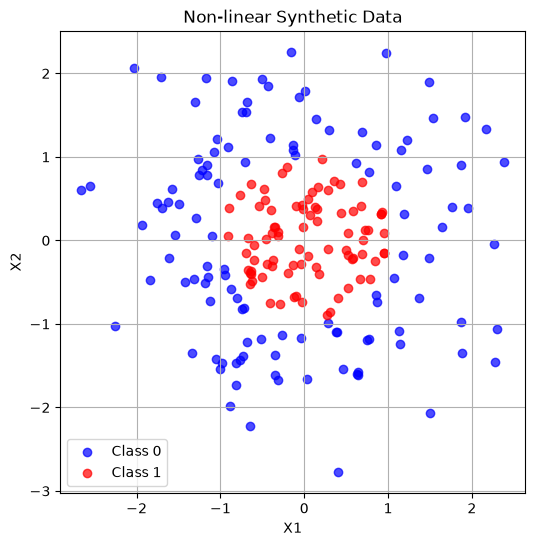

What if our decision boundary was not linear?

# Generate non-linear separable data (circle)
np.random.seed(0)
n_samples = 200
X = np.random.randn(n_samples, 2)
# Circular decision boundary: points inside radius 1 are class 1, outside are 0
y = (X[:,0]**2 + X[:,1]**2 < 1).astype(int)

# Plot the data
plt.figure(figsize=(6,6))
plt.scatter(X[y==0,0], X[y==0,1], color='blue', label='Class 0', alpha=0.7)
plt.scatter(X[y==1,0], X[y==1,1], color='red', label='Class 1', alpha=0.7)
plt.xlabel('X1')
plt.ylabel('X2')
plt.title('Non-linear Synthetic Data')
plt.legend()
plt.grid(True)
plt.show()

# Train logistic regression
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=1)
logreg = LogisticRegression()
logreg.fit(X_train, y_train)

# Predict and evaluate
y_pred = logreg.predict(X_test)
acc = accuracy_score(y_test, y_pred)
print(f"Accuracy: {acc:.3f}")
print("Confusion Matrix:\n", confusion_matrix(y_test, y_pred))

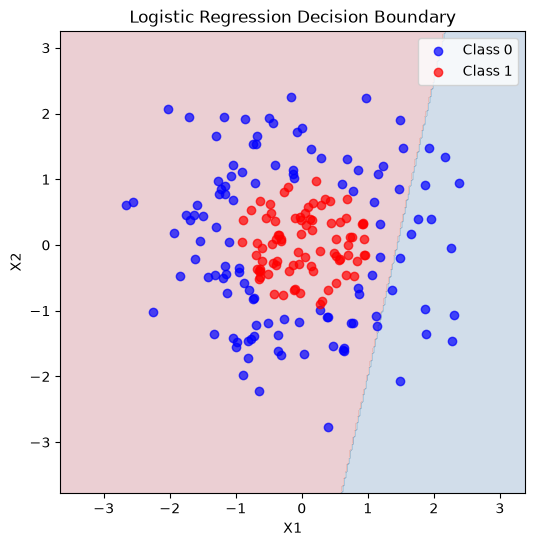

# Plot decision boundary
xx, yy = np.meshgrid(np.linspace(X[:,0].min()-1, X[:,0].max()+1, 300),
                     np.linspace(X[:,1].min()-1, X[:,1].max()+1, 300))
Z = logreg.predict(np.c_[xx.ravel(), yy.ravel()]).reshape(xx.shape)

plt.figure(figsize=(6,6))
plt.contourf(xx, yy, Z, alpha=0.2, cmap='RdBu')
plt.scatter(X[y==0,0], X[y==0,1], color='blue', label='Class 0', alpha=0.7)
plt.scatter(X[y==1,0], X[y==1,1], color='red', label='Class 1', alpha=0.7)
plt.xlabel('X1')
plt.ylabel('X2')
plt.title('Logistic Regression Decision Boundary')
plt.legend()
plt.show()

Accuracy: 0.517
Confusion Matrix:
 [[31  4]
 [25  0]]

How did we do at predicting these classes? We got most of the class 0 data right, but we did not get a single one of the class 1 points! Our accuracy was actually pretty low and we can see from the picture that the decision boundary really did not match our data. A straight line can not separate the inside of a circle from the outside.

We can use polynomial features here too!

# --- Create polynomial features (degree 2) ---
poly = PolynomialFeatures(degree=2, include_bias=False)
X_train_poly = poly.fit_transform(X_train)
X_test_poly  = poly.transform(X_test)

# --- Fit logistic regression on polynomial features ---
logreg_poly = LogisticRegression(max_iter=500)
logreg_poly.fit(X_train_poly, y_train)

LogisticRegression(max_iter=500)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

LogisticRegression

?Documentation for LogisticRegressioniFitted

Parameters

	max_iter max_iter: int, default=100 Maximum number of iterations taken for the solvers to converge.	500
	penalty penalty: {'l1', 'l2', 'elasticnet', None}, default='l2' Specify the norm of the penalty: - `None`: no penalty is added; - `'l2'`: add an L2 penalty term and it is the default choice; - `'l1'`: add an L1 penalty term; - `'elasticnet'`: both L1 and L2 penalty terms are added. .. warning:: Some penalties may not work with some solvers. See the parameter `solver` below, to know the compatibility between the penalty and solver. .. versionadded:: 0.19 l1 penalty with SAGA solver (allowing 'multinomial' + L1) .. deprecated:: 1.8 `penalty` was deprecated in version 1.8 and will be removed in 1.10. Use `l1_ratio` and `C` instead. `l1_ratio=0` for `penalty='l2'`, `l1_ratio=1` for `penalty='l1'`, `l1_ratio` set to any float between 0 and 1 for `penalty='elasticnet'`, and `C=np.inf` for `penalty=None`.	'deprecated'
	C C: float, default=1.0 Inverse of regularization strength; must be a positive float. Like in support vector machines, smaller values specify stronger regularization. `C=np.inf` results in unpenalized logistic regression. For a visual example on the effect of tuning the `C` parameter with an L1 penalty, see: :ref:`sphx_glr_auto_examples_linear_model_plot_logistic_path.py`.	1.0
	l1_ratio l1_ratio: float, default=0.0 The Elastic-Net mixing parameter, with `0 <= l1_ratio <= 1`. Setting `l1_ratio=1` gives a pure L1-penalty, setting `l1_ratio=0` a pure L2-penalty. Any value between 0 and 1 gives an Elastic-Net penalty of the form `l1_ratio * L1 + (1 - l1_ratio) * L2`. .. warning:: Certain values of `l1_ratio`, i.e. some penalties, may not work with some solvers. See the parameter `solver` below, to know the compatibility between the penalty and solver. .. versionchanged:: 1.8 Default value changed from None to 0.0. .. deprecated:: 1.8 `None` is deprecated and will be removed in version 1.10. Always use `l1_ratio` to specify the penalty type.	0.0
	dual dual: bool, default=False Dual (constrained) or primal (regularized, see also :ref:`this equation <regularized-logistic-loss>`) formulation. Dual formulation is only implemented for l2 penalty with liblinear solver. Prefer `dual=False` when n_samples > n_features.	False
	tol tol: float, default=1e-4 Tolerance for stopping criteria.	0.0001
	fit_intercept fit_intercept: bool, default=True Specifies if a constant (a.k.a. bias or intercept) should be added to the decision function.	True
	intercept_scaling intercept_scaling: float, default=1 Useful only when the solver `liblinear` is used and `self.fit_intercept` is set to `True`. In this case, `x` becomes `[x, self.intercept_scaling]`, i.e. a "synthetic" feature with constant value equal to `intercept_scaling` is appended to the instance vector. The intercept becomes ``intercept_scaling * synthetic_feature_weight``. .. note:: The synthetic feature weight is subject to L1 or L2 regularization as all other features. To lessen the effect of regularization on synthetic feature weight (and therefore on the intercept) `intercept_scaling` has to be increased.	1
	class_weight class_weight: dict or 'balanced', default=None Weights associated with classes in the form ``{class_label: weight}``. If not given, all classes are supposed to have weight one. The "balanced" mode uses the values of y to automatically adjust weights inversely proportional to class frequencies in the input data as ``n_samples / (n_classes * np.bincount(y))``. Note that these weights will be multiplied with sample_weight (passed through the fit method) if sample_weight is specified. .. versionadded:: 0.17 class_weight='balanced'	None
	random_state random_state: int, RandomState instance, default=None Only used for `solver` == 'sag', 'saga' or 'liblinear' to shuffle the data. It has no effect on the other solvers. See :term:`Glossary <random_state>` for details.	None
	solver solver: {'lbfgs', 'liblinear', 'newton-cg', 'newton-cholesky', 'sag', 'saga'}, default='lbfgs' Algorithm to use in the optimization problem. Default is 'lbfgs'. To choose a solver, you might want to consider the following aspects: - 'lbfgs' is a good default solver because it works reasonably well for a wide class of problems. - For :term:`multiclass` problems (`n_classes >= 3`), all solvers except 'liblinear' minimize the full multinomial loss, 'liblinear' will raise an error. - 'newton-cholesky' is a good choice for `n_samples` >> `n_features * n_classes`, especially with one-hot encoded categorical features with rare categories. Be aware that the memory usage of this solver has a quadratic dependency on `n_features * n_classes` because it explicitly computes the full Hessian matrix. - For small datasets, 'liblinear' is a good choice, whereas 'sag' and 'saga' are faster for large ones; - 'liblinear' can only handle binary classification by default. To apply a one-versus-rest scheme for the multiclass setting one can wrap it with the :class:`~sklearn.multiclass.OneVsRestClassifier`. .. warning:: The choice of the algorithm depends on the penalty chosen (`l1_ratio=0` for L2-penalty, `l1_ratio=1` for L1-penalty and `0 < l1_ratio < 1` for Elastic-Net) and on (multinomial) multiclass support: ================= ======================== ====================== solver l1_ratio multinomial multiclass ================= ======================== ====================== 'lbfgs' l1_ratio=0 yes 'liblinear' l1_ratio=1 or l1_ratio=0 no 'newton-cg' l1_ratio=0 yes 'newton-cholesky' l1_ratio=0 yes 'sag' l1_ratio=0 yes 'saga' 0<=l1_ratio<=1 yes ================= ======================== ====================== .. note:: 'sag' and 'saga' fast convergence is only guaranteed on features with approximately the same scale. You can preprocess the data with a scaler from :mod:`sklearn.preprocessing`. .. seealso:: Refer to the :ref:`User Guide <Logistic_regression>` for more information regarding :class:`LogisticRegression` and more specifically the :ref:`Table <logistic_regression_solvers>` summarizing solver/penalty supports. .. versionadded:: 0.17 Stochastic Average Gradient (SAG) descent solver. Multinomial support in version 0.18. .. versionadded:: 0.19 SAGA solver. .. versionchanged:: 0.22 The default solver changed from 'liblinear' to 'lbfgs' in 0.22. .. versionadded:: 1.2 newton-cholesky solver. Multinomial support in version 1.6.	'lbfgs'
	verbose verbose: int, default=0 For the liblinear and lbfgs solvers set verbose to any positive number for verbosity.	0
	warm_start warm_start: bool, default=False When set to True, reuse the solution of the previous call to fit as initialization, otherwise, just erase the previous solution. Useless for liblinear solver. See :term:`the Glossary <warm_start>`. .. versionadded:: 0.17 warm_start to support lbfgs, newton-cg, sag, saga solvers.	False
	n_jobs n_jobs: int, default=None Does not have any effect. .. deprecated:: 1.8 `n_jobs` is deprecated in version 1.8 and will be removed in 1.10.	None

Fitted attributes

Name	Type	Value
classes_ classes_: ndarray of shape (n_classes, ) A list of class labels known to the classifier.	ndarray[int64](2,)	[0,1]
coef_ coef_: ndarray or CSR matrix of shape (1, n_features) or (n_classes, n_features) Coefficients of the features in the decision function. `coef_` is of shape (1, n_features) when the given problem is binary. By default, it will be created as a dense array, but can be turned to sparse (CSR format) through :meth:`sparsify` (which can be beneficial under L1 regularization when many coefficients are zero), and back to dense through :meth:`densify`.	ndarray[float64](1, 5)	[[ 0.37, 0.12,-2.86,-0. ,-3.14]]
intercept_ intercept_: ndarray of shape (1,) or (n_classes,) Intercept (a.k.a. bias) added to the decision function. If `fit_intercept` is set to False, the intercept is set to zero. `intercept_` is of shape (1,) when the given problem is binary.	ndarray[float64](1,)	[3.5]
n_features_in_ n_features_in_: int Number of features seen during :term:`fit`. .. versionadded:: 0.24	int	5
n_iter_ n_iter_: ndarray of shape (1, ) Actual number of iterations for all classes. .. versionchanged:: 0.20 In SciPy <= 1.0.0 the number of lbfgs iterations may exceed ``max_iter``. ``n_iter_`` will now report at most ``max_iter``.	ndarray[int32](1,)	[12]

# Predict and evaluate
y_pred = logreg_poly.predict(X_test_poly)
acc = accuracy_score(y_test, y_pred)
print(f"Accuracy with polynomial features: {acc:.3f}")
print("Confusion Matrix:\n", confusion_matrix(y_test, y_pred))

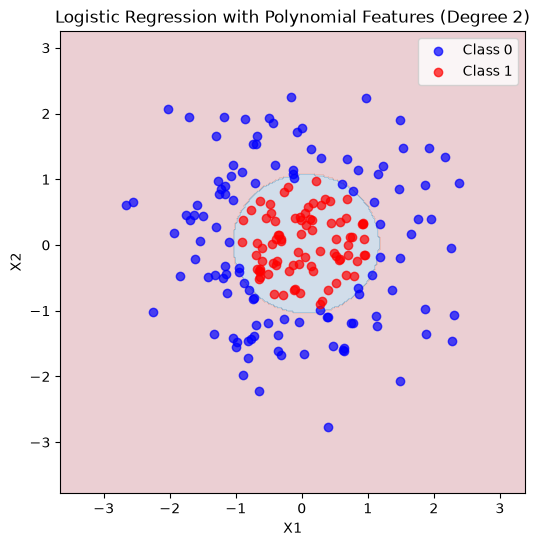

# --- Plot decision boundary ---
xx, yy = np.meshgrid(np.linspace(X[:,0].min()-1, X[:,0].max()+1, 300),
                     np.linspace(X[:,1].min()-1, X[:,1].max()+1, 300))
grid = np.c_[xx.ravel(), yy.ravel()]
grid_poly = poly.transform(grid)
Z = logreg_poly.predict(grid_poly).reshape(xx.shape)

plt.figure(figsize=(6,6))
plt.contourf(xx, yy, Z, alpha=0.2, cmap='RdBu')
plt.scatter(X[y==0,0], X[y==0,1], color='blue', label='Class 0', alpha=0.7)
plt.scatter(X[y==1,0], X[y==1,1], color='red', label='Class 1', alpha=0.7)
plt.xlabel('X1')
plt.ylabel('X2')
plt.title('Logistic Regression with Polynomial Features (Degree 2)')
plt.legend()
plt.show()

Accuracy with polynomial features: 0.917
Confusion Matrix:
 [[30  5]
 [ 0 25]]

We still have over vs underfitting!

You Try

Play around with the code above, degree 1 is definitely underfitting - a straight line does not capture the complexity of this data. How do higher degree fits do?

# Your code here

Homework 12

The full assignment is in HW_day12.ipynb in your sandbox. The short version: use the avocado data from last class to predict firmness (a number) and whether or not an avocado is ripe (yes or no), and decide which model is the right one for each question.

Work the problems in your sandbox and push it, your sandbox is your backup. Your write-up notebook goes in Week07 of your team’s repo, along with Homework 11. Both are due Sunday 11/1 at 11:59pm.
